RileyLink 916MHz (Medtronic) to BLE Bridge Complete Kit

$150

The RileyLink is an Open designed Bluetooth Low Energy (BLE) to 916MHz module, that can be used to connect BLE capable devices to 916Mhz – 868Mhz based devices.  We are producing these boards and making them available to the “Maker” community at our cost plus the cost of shipping.  This is a complete Kit with Rileylink, SlimCase, and Battery included.

The RileyLink 916 can be used to communicate* with devices in the 916-868Mhz RF Spectrum for example:

  • Medtronic – (715, 515, 722, 522, 723, 523, 754, 554) Insulin Pumps
  • 916Mhz – Zwave Devices
  • Kwikset – Obsidian Smart Loc
  • Zipato – Bulb 2

* Software and programming for specific devices may require custom development and/or use of open source software tools to integrate with 916-868Mhz devices.

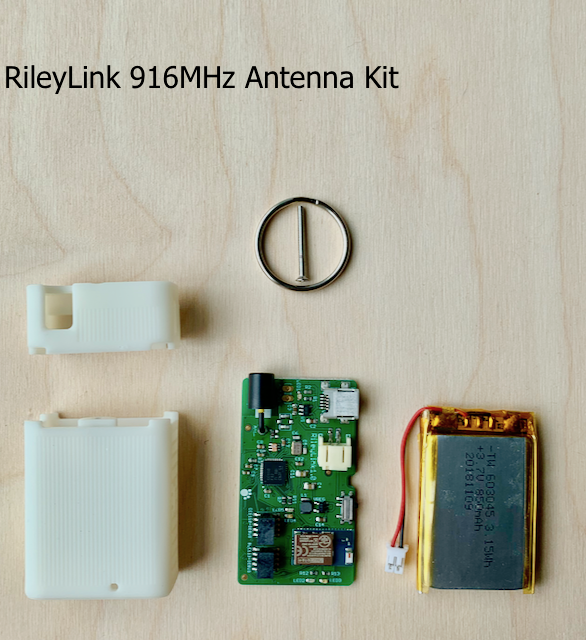

Included In Your Order

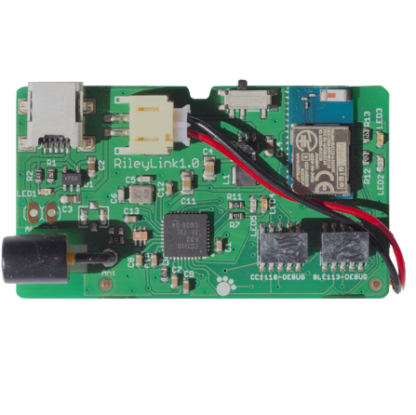

Fabricated / Tested  RileyLink v1.0 PCB with the latest subg_rfspy firmware pre-installed for Quality Control testing

916 – 868MHz Antenna Pre-Soldered to RileyLink Board

850 mAh Polymer Lithium Ion Battery

RileyLink SlimCase Pro By Robert Silvers (LoopCases.com)

USPS First Class Shipping (USA)

USPS First Class International Shipping (You may need to pay your Gov’t Customs Import Tax when you receive the package)

 运往中国或香港的货物需要使用转运服务 xianfengex.com / myus.com
Shipments to China or Hong Kong require the use of a Trans-Shipment Service

Not Included With Your Order

  • Mini USB Cable for Charging Battery (Amazon)
  • USB Charging Power Supply 0.5A (Amazon)

Warranty

  • Sold As-Is
  • Without-Warranty
  • Not-For-Profit

Shipping Times

We will make every effort to ship your RileyLink to you as quickly as possible.

  • 1-3 Days – You will receive an email with a Shipment Tracking Number
  • 1-2 Days Later – You will start to see the shipment moving in USPS System
  • 2 Days Later (USA Shipments)- should be delivered (7 Days Total)
  • 10-15 Days Later (International Shipments) should be delivered.  Customs seems to randomly hold packages so you may need to call your country’s postal customs office. (20 Days Total)

Limit (2) RileyLink Kits Per Order (Due to battery shipping restrictions)

116 in stock (can be backordered)

SKU: RILEYLINK916 Category:

Description

The RileyLink is an Open designed Bluetooth Low Energy (BLE) to 916MHz module, that can be used to connect BLE capable devices to 916Mhz – 868Mhz based devices.  We are producing these boards and making them available to the “Maker” community at our cost plus the cost of shipping.  This is a complete Kit with Rileylink, SlimCase, and Battery included.

Support

Please see the RileyLink Support Page for Links to the Support Community https://getrileylink.org/support

 SlimCase Installation Instructions

SlimCase Installation Video
Here’s a video for those of you who like to watch and learn. 🙂

This is a volunteer community driven project, and as such please be aware that we are unable to provide full time phone, email and direct support services. For Support and Documentation please follow the links in the support section of the site to the Open Community Forums.

This is a small production run of the RileyLink, designed by Pete Schwamb

Additional information

Dimensions

2.09” x 1.18"
Frequency

916 Mhz – 868 MHz
Bluetooth LE

Yes
Power

Requires Standard Mini-USB cable and minimum of Standard USB .5A Charger (Not-Included)
Battery

850 mAh Polymer Lithium Ion Battery
Firmware:

All RileyLinks will arrive with latest subg_rfspy firmware pre-installed. If you want to change this firmware or upgrade at a later date, you will need a Ti CC Debugger Tool (Can be purchased on DigiKey Website). If you plan to use the current version of the firmware this tool may not be necessary.
